EN3? MOLDED CABLE ASSEMBLIES
PATCH CORDS & MOLDED CABLE ASSEMBLIES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

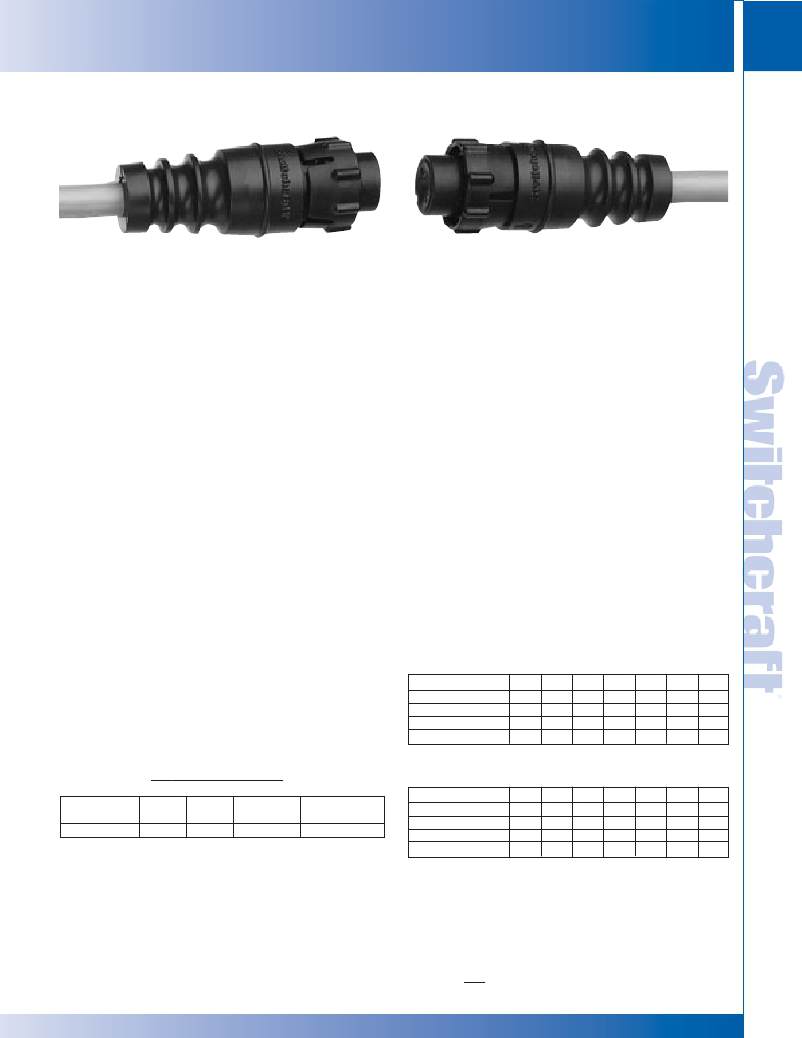

EN3 ? MINI WEATHERTIGHT OVERMOLDED CABLE ASSEMBLIES
243
FEATURES AND BENEFITS
? Dual purpose handle provides flex relief and finger grip
design for easy insertion and withdrawal.
? Available in both cord and in-line versions.
? 2 through 8 pin configurations.
? Superior leakage protection. Contact area is double-sealed
for excellent moisture and chemical resistance.
? Integral O-ring and gasket. O-ring is molded onto cord
housing assembly and gasket is molded onto panel
housing assembly to prevent leakage and eliminate
need for additional copper case o-rings and gaskets.
? Thermoplastic rubber body simulates closed entry contact
system to prevent probe damage or accidental loss of
spring retention due to misaligned or bent pins.
? Housing rated UL 94V-O against flammability.
? Exceeds Coast Guard specifications for water tightness
(CFR 46 Part 110.20).
? Exceeds enclosure rating IP16/IP18 when not mated or
covered and IP66/IP68 when mated or covered (IEC 529).
? Exceeds enclosure rating 6P at 1000V when mated
or covered (NEMA 250).
APPLICATIONS
? Process Control
? Communications
? Marine Electronics
? Transportation
? Medical Instrumentation
? General Industrial Electronics
? Geothermal Instrumentation
MATERIALS
Connector shells, contact locking disk:
SPECIFICATIONS
MECHANICAL
Shock: Mil-Std 202 Method 213B, condition K
Vibration: Mil-Std 202 Method 201
Life: 600 insertion/withdrawal cycles (minimum)
ELECTRICAL
Voltage Rating (sea level): Tested at 600 VRMS
Insulation Resistance: 100 megohms (minimum) at 77° F
Contact Resistance: 5 milliohms (maximum)
Current Rating: 7.5 Amps (#20 contact);
13.0 Amps (#16 contact)
ENVIRONMENTAL
Temperature Limits: -40°C to +65°C (non-operating)
Moisture Resistance: Mil-Std 202 Method 106F
Insulation Resistance: Mil-Std 202 Method 302 condition B
Thermal Shock: Mil-Std 202 Method 107G
Salt Spray: Mil-Std 202 Method 101D condition B
RATINGS
IP16/IP18
IP66/IP68
NEMA 250 (6P)
CFR 46 Part 110.20
UL 94V-O
Patent 5,485,673 File 36049
OVERMOLDED STYLE NUMBER
#20 CONTACT SIZE
Thermoplastic polymer glass fiber, flame retardant
Coupling ring: Nylon
Connector shell interior: Thermoplastic rubber
Contacts: Copper base alloy gold-plated over
nickel underplate
Number of Pins
Male Cord
Female Cord
Male Inline
Female Inline
2
502
512
522
532
3
503
513
523
533
4
504
514
524
534
5
505
515
525
535
6
506
516
526
536
7
—
517
527
—
8
—
518
528
—
1st
Termination
503
PART NUMBERING GUIDE*
Example:
Length
Color Cable in Inches
H A 072
2nd
Termination
184
Number of Pins
Male Cord
Female Cord
Male Inline
OVERMOLDED STYLE NUMBER
#16 CONTACT SIZE
2 3 4 5 6
552 553 — — —
562 563 — — —
572 573 — — —
7
—
—
—
8
—
—
—
*In most instances the multi-conductor cable will be used – found on page 252.
Female Inline
582
583
—
—
—
—
—
The overmolded EN3 ? cable can accept nominal cable
O.D.’s up to .300.
Tooling charges may apply for customer specified cable.
Note: 9-18 versions can also be molded. Contact factory for details.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
